Magnetic chuck

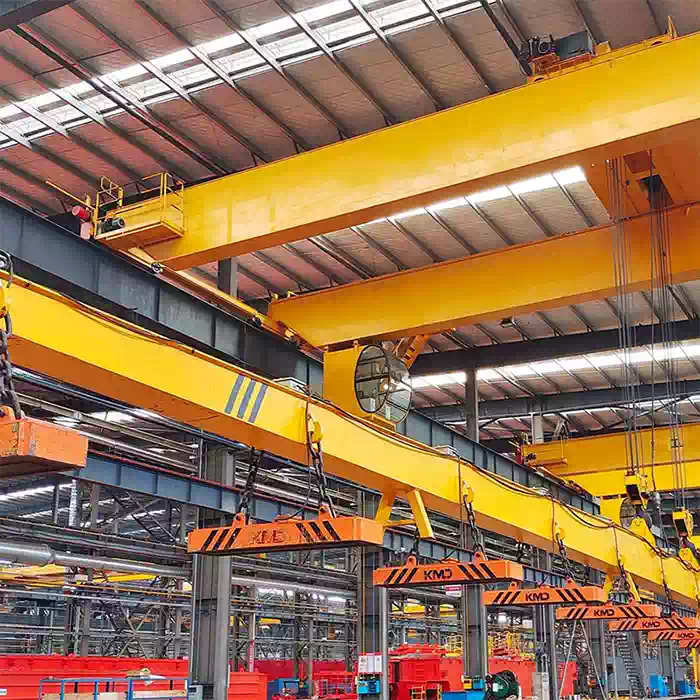

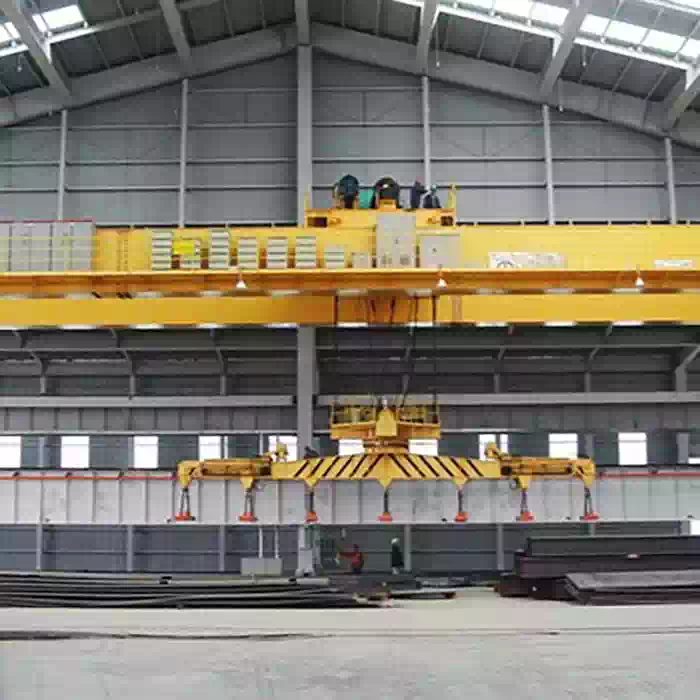

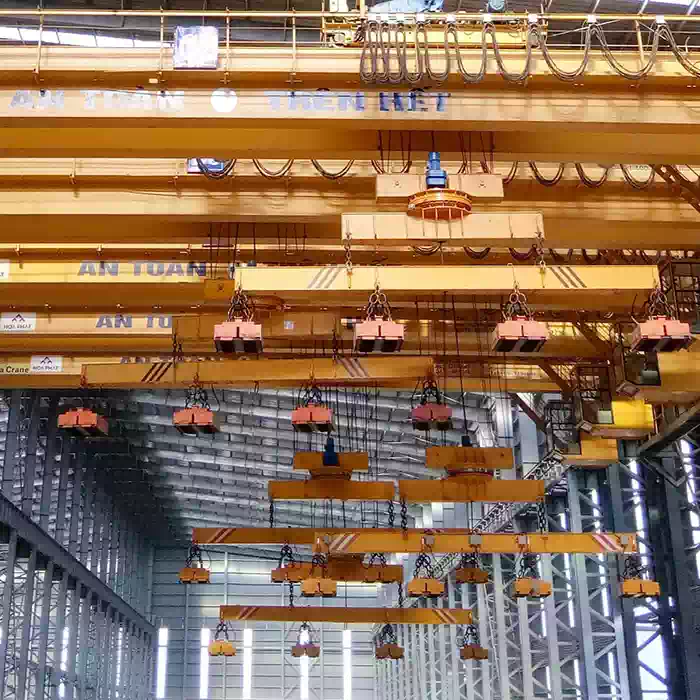

Overhead crane with electromagnetic beam is a specialized crane for lifting and moving steel products, steel plates and steel pipes. This crane is constituted by girder, traveling mechanisms, lifting trolley, electric parts and electromagnet spreader. The electromagnetic suction force of this overhead crane can last 10 minutes after power off. And the shape of electromagnet spreader could be customized bases on the shape of materials to be lifted. There are 2 types of electromagnet spreader: electromagnetic chuck and electromagnetic beam. And electromagnetic beam can also be 2 kinds: non-rotating beam (vertical or parallel to main girder) and rotating beam (Upper beam or hanging beam).
There are 2 types of electromagnet spreader: electromagnetic chuck and electromagnetic beam. And electromagnetic beam can also be 2 kinds: non-rotating beam (vertical or parallel to main girder) and rotating beam (Upper beam or hanging beam).
Features of Double beams overhead bridge traveling magnetic crane:
1. Overhead traveling on the steel structure, normally in workshop, heavy working duty from A5-A8.
2. With magnetic/magnet plate under the crane as the lifting tool, to lift steel scrap, steel material etc.
3. Soft start, 3-5 speeds to operate, very stable to lift and running.
4. Six direction action, to make sure the enough wide working ared.
5.Full safety system as follows:
* Weight overload protection
* Emergency stop system
* Over current protection, short-circuit protection
* Phase sequence proetction
* Zero position proetection
* Voltage loss protection
* Limit switch and stopper for crane long traveling and cross traveling
* Lifting overhigh and overlow limit switch
The double beam magnetic crane, featuring a detachable electric panel, offers unique advantages for material handling tasks.
1. Applications in Metallurgical Plants
Indoor and Outdoor Operations
In metallurgical plants, it is highly suitable for both indoor and outdoor work. Indoors, with fixed spans, it efficiently handles large magnets. The crane's double - beam structure provides stability, enabling it to precisely position and move these magnets during manufacturing or maintenance processes. Outdoors, despite the harsher environment, it can still be effectively used for similar tasks. However, to safeguard against weather elements, it must be used in conjunction with rainproof equipment. This ensures the continuous and reliable operation of the crane, protecting its electrical components from rain - induced damage.
2. Applications in Factories and Warehouses
Handling Ferrous Materials
Factories and warehouses frequently rely on double beam magnet cranes for transporting various ferrous materials. Steel, iron blocks, scrap iron, and scrap steel are easily picked up and moved using the crane's powerful magnetic lifting mechanism. This not only speeds up the material handling process but also reduces the need for manual labor, improving overall efficiency. Whether it's moving raw materials to the production line in a factory or rearranging inventory in a warehouse, the double beam magnetic crane proves to be a versatile and reliable solution.
