Segmented Leg Gantry Crane
Authentication mark:
For customized products, please fill out information and submit the form.
Capacity:
Lifting Height:
Span:
Voltage/Hertz:
Working Class:
- A5
Sling available:
-
Lifting hook
Apply : The segmented leg gantry crane suitable for use in situations where large cranes cannot enter.
SUBMIT
CONSULT
HOT PRODUCTS
Product Overview

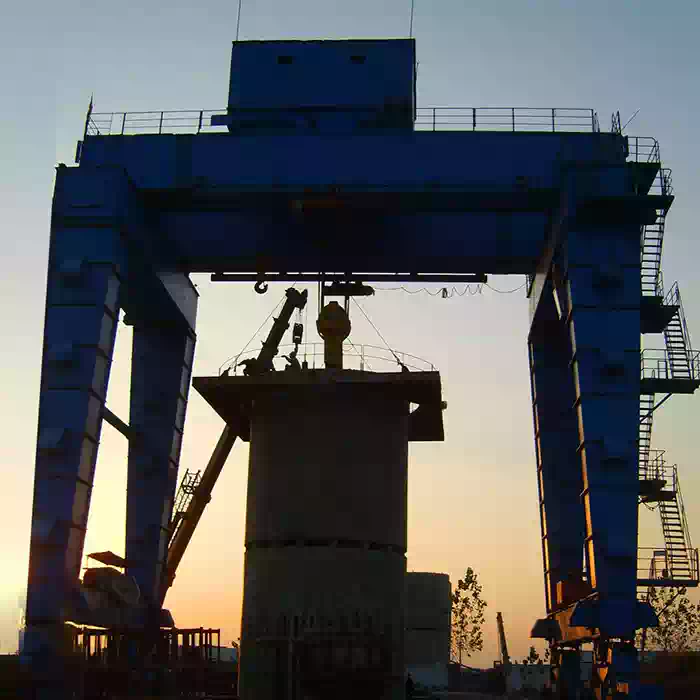

The segmented leg gantry crane bears a resemblance to the U - shaped gantry crane. At first glance, the gantry structure of both appears as a U - shaped gantry, yet they diverge significantly when it comes to the supporting legs. In the case of the segmented leg gantry crane, its leg design is a response to unique working conditions. In certain work environments, large - scale lifting equipment like all - terrain cranes face insurmountable obstacles in accessing the site. This could be due to narrow passages, limited space, or specific site regulations. As a result, the legs of the segmented leg gantry crane are ingeniously crafted into several sections or segments.

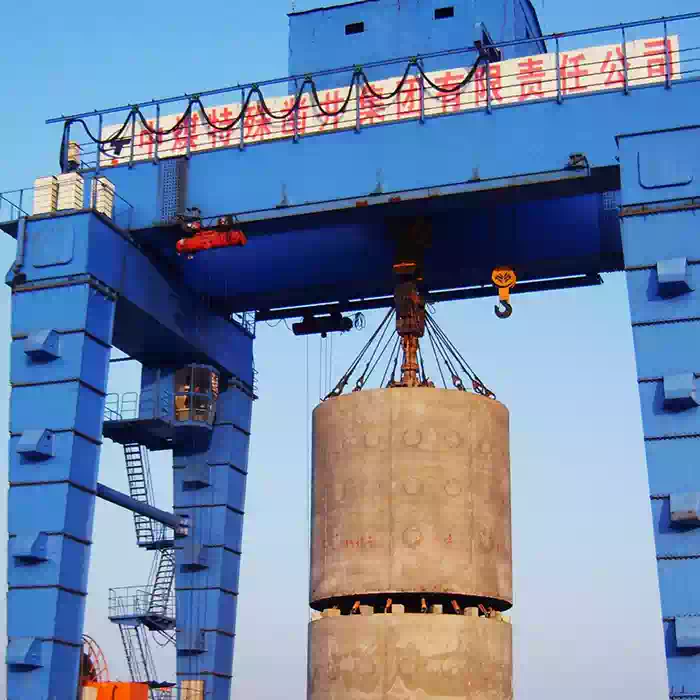

Each section of the leg is equipped with a specialized jack - up support mechanism. This design not only allows for greater adaptability to the terrain but also eases the installation process. Once the trolley and the end carriage of the main beam have been meticulously assembled, the initial step in setting up the crane involves using a jack to carefully jack up these components. This elevation provides the necessary clearance to begin connecting the leg sections. Each section of the legs is then sequentially joined together using flanges. The use of flanges ensures a secure and stable connection between the segments, capable of withstanding the substantial loads that the crane will encounter during operation.
Application Scenario
The segmented leg gantry crane is highly suitable for use in situations where large cranes cannot enter. In construction sites within urban areas, for instance, the presence of narrow, winding streets and tight spaces between existing buildings often restricts the entry of large - scale, bulky cranes. Here, the segmented leg gantry crane's design proves invaluable. Its legs, divided into multiple sections, can be easily transported through these constricted passages. Once on - site, the sections are assembled piece by piece, a process made feasible due to their manageable size.
Industrial plants undergoing renovation also frequently encounter such scenarios. Existing machinery and equipment, along with complex piping systems, can clutter the area, leaving no room for large cranes to maneuver. The segmented leg gantry crane, with its modular leg design, can be set up in a step - by - step manner. Each leg section, equipped with a jack - up support, allows for precise elevation and alignment during installation. This adaptability ensures that the crane can be operational even in the most challenging of spaces.
In remote locations where the terrain is uneven or there are no proper access roads, large all - terrain cranes might still struggle to reach the work area. The segmented leg gantry crane, however, can be disassembled into smaller segments for transportation. These segments can be carried by smaller vehicles or even manually in some cases. Once at the site, the crane is reassembled, with the leg sections being joined using flanges to form a stable structure. This enables it to perform essential lifting tasks such as moving construction materials for building small - scale power plants or installing equipment in mining operations that are located in hard - to - reach areas.
