Lifting hook

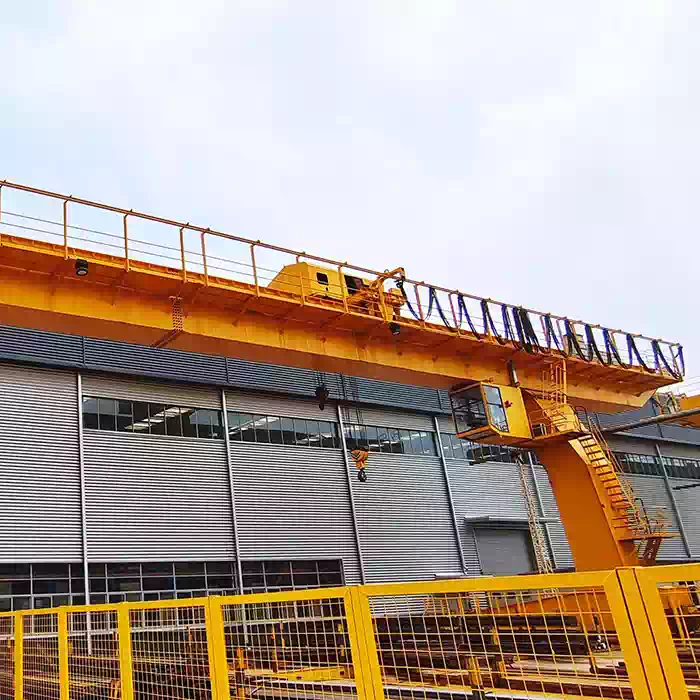

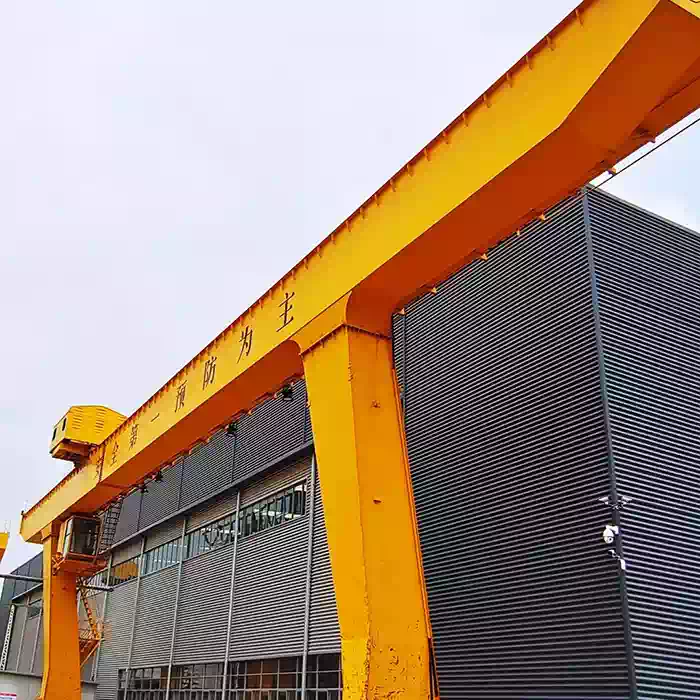

Type L single beam gantry crane is mainly composed of gantry, crane crab, trolley travelling mechanism, cab and electric control system. The gantry is of a box-shape structure.The crab adopts vertical reaction wheel when the lifting load is below 20t, and horizontal reaction wheel when above 20t to run at the girder side.The girder is of single-girder bias track and the leg is L-shaped SO that the lifting space is large and the spanning ability is strong, making it easy to Covey articles from the span to under the jib. Simple structure and smaller weight and price.
Features:
1. Box type girder, L type legs with weld structure, increasing he work space, and convenient for installation and maintenance;
2. Trolley power supply adopts profiled rails, safety slide conductor rail; and the cable conductive device system;
3. Components standardization, seriation and generalization;
4. Crane power supply can be from cable reel (left and right) and conductor rails (left and right);
5. Good operation vision of cab, equipped the internal linkage control console, flexible and comfortable operation, install of fan, heater, cooler, air-conditions and intercom according to the customers' requirements;
6. Customized according to the users' needs of working environment, types of power source and the other technical requirements. Also design and manufacture span according to users' requirements.
The Type L single beam gantry crane is designed with a distinct L - shaped structure that contributes to its functionality and wide - ranging applications.
1. Structural Features
Enabling Versatile Operations
Its L - shaped configuration offers a unique balance between stability and mobility. The single beam design is lightweight yet robust, crafted from high - quality steel materials. This makes it suitable for handling a variety of loads while being cost - effective. The crane is equipped with efficient hoisting and traveling mechanisms, allowing for smooth and precise movement.
2. Outdoor Applications
Outdoor Material Handling Efficiency
Outdoors, the Type L single beam gantry crane excels. In construction sites, it can effortlessly lift and transport building materials such as bricks, concrete blocks, and steel bars. Its ability to operate in open spaces makes it ideal for large - scale projects where materials need to be moved across significant distances. At stock grounds, whether it's a lumber yard or a scrap yard, the crane can quickly load and unload trucks. The gantry design enables it to cover a wide area, moving materials to different storage sections efficiently.
3. Applications in Warehouses, Railway Stations, and Sea Port Cargo Areas
Indoor and Logistics Hub Operations
Within warehouses, the crane simplifies inventory management. It can easily pick up pallets of goods and transport them to storage racks, optimizing the use of vertical space. In railway stations, it plays a crucial role in loading and unloading cargo from trains. Heavy - duty crates or containers filled with various goods can be quickly transferred to waiting trucks or storage areas. At sea port cargo areas, the Type L single beam gantry crane helps in the seamless transfer of goods between ships and land - based transportation. It can handle a range of cargo sizes, from small packages to large shipping containers, ensuring smooth operations in these bustling logistics hubs.
