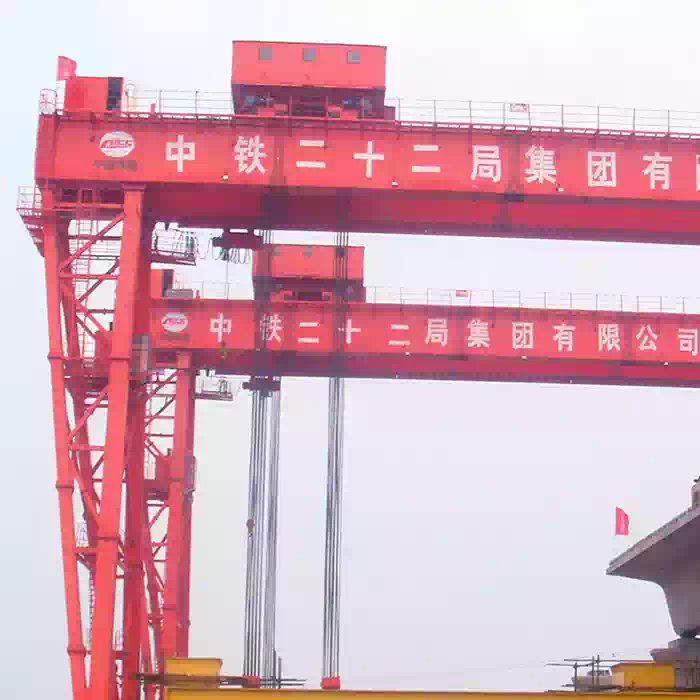

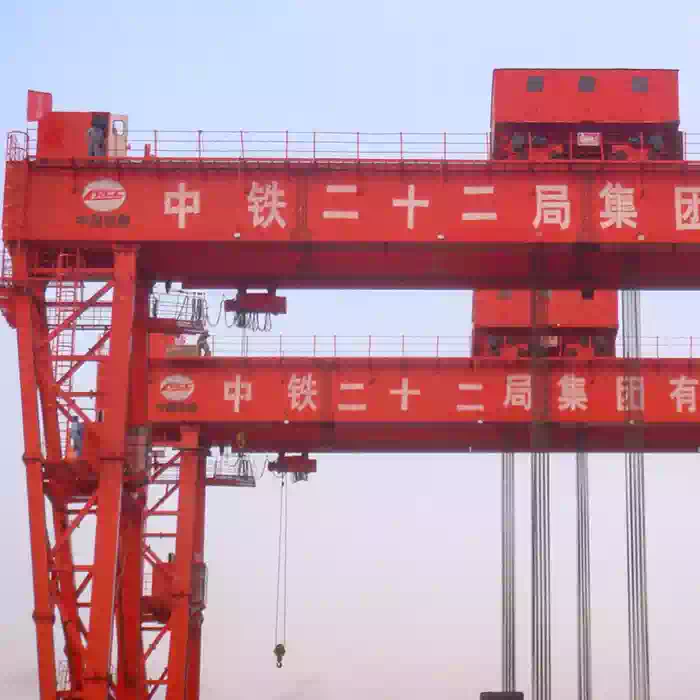

Precast Beam Lifting Gantry Crane
Authentication mark:
For customized products, please fill out information and submit the form.
Capacity:
Lifting Height:
Span:
Voltage/Hertz:
Working Class:
- A5
Sling available:
-
Lifting hook
Apply : Precast beam lifting gantry crane is mainly used to hang the prefabricated beams from the beam making site to beam storage site and to trucks.
SUBMIT
CONSULT
HOT PRODUCTS
Product Overview
The beam lifting gantry crane is a highly specialized type of crane, meticulously designed to meet the unique demands of bridge construction projects. Its robust construction and advanced engineering make it an indispensable asset in this field.
This gantry crane offers remarkable flexibility in its operation. It has the capacity to work independently, with a single unit capable of handling loads up to 900t. This is especially useful when dealing with large - scale precast beams that require a substantial amount of lifting force. In other scenarios, two cranes, each with a capacity of 450t (450t + 450t), can be deployed to work in tandem. This collaborative approach is highly effective for lifting precast beams of a size or weight that is more efficiently managed by the combined effort of two units. The synchronization of the two cranes is carefully engineered, ensuring seamless coordination during the lifting process.
In the context of bridge construction, one of its primary functions is to transfer prefabricated beams. It plays a crucial role in the transition of these beams from the beam making site to the beam storage site. At the beam making site, where precast beams are fabricated with precision, the beam lifting gantry crane carefully hoists the beams using its specially designed lifting attachments. These attachments are engineered to firmly grip the beams without causing any damage, ensuring the integrity of the precast elements. The crane then smoothly transports the beams along the tracks or designated path to the beam storage site, where they are temporarily stored until needed for further installation.
Application Scenario
The precast beam lifting gantry crane is an essential piece of equipment in the construction industry, playing a pivotal role in the handling of prefabricated beams. Primarily, it is tasked with the crucial operation of transporting precast beams from the beam making site to the beam storage site. At the beam making site, where precast beams are carefully fabricated with precision and quality control in mind, the gantry crane's powerful lifting mechanism swings into action. Equipped with specialized lifting slings or hooks, it gently but firmly secures the precast beams. These beams, which vary in size and weight depending on the specific construction requirements, are then smoothly hoisted off the ground.
The crane operator, with the aid of advanced control systems, maneuvers the crane along a designated path towards the beam storage site. This path is often optimized to ensure minimal disruption to other construction activities taking place simultaneously. As the crane approaches the beam storage site, it precisely lowers the precast beams into pre - marked storage positions. This careful placement not only maximizes the use of space in the storage area but also safeguards the integrity of the beams, preventing any potential damage during storage.
